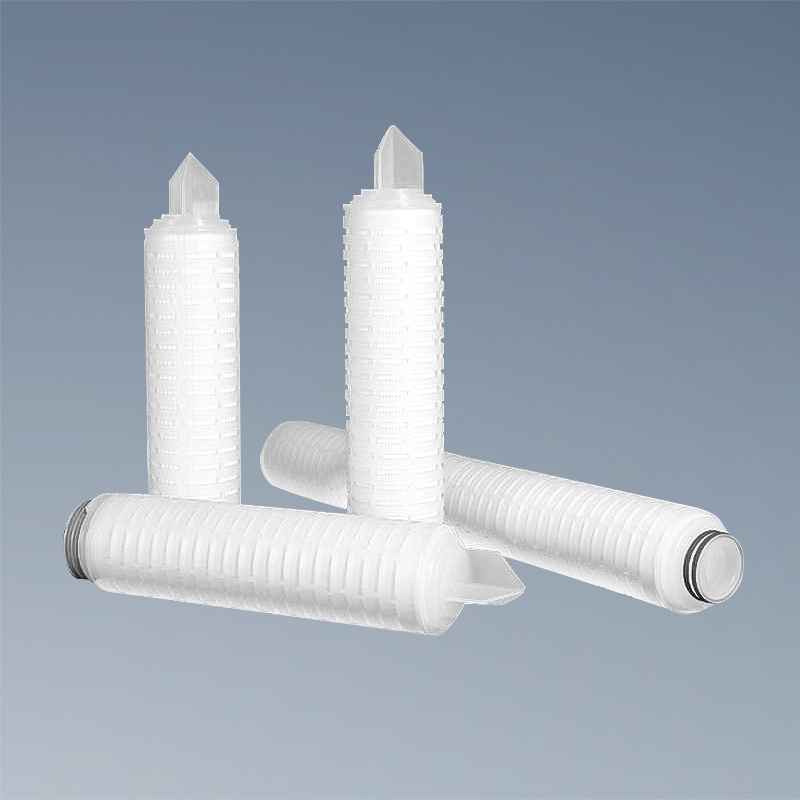

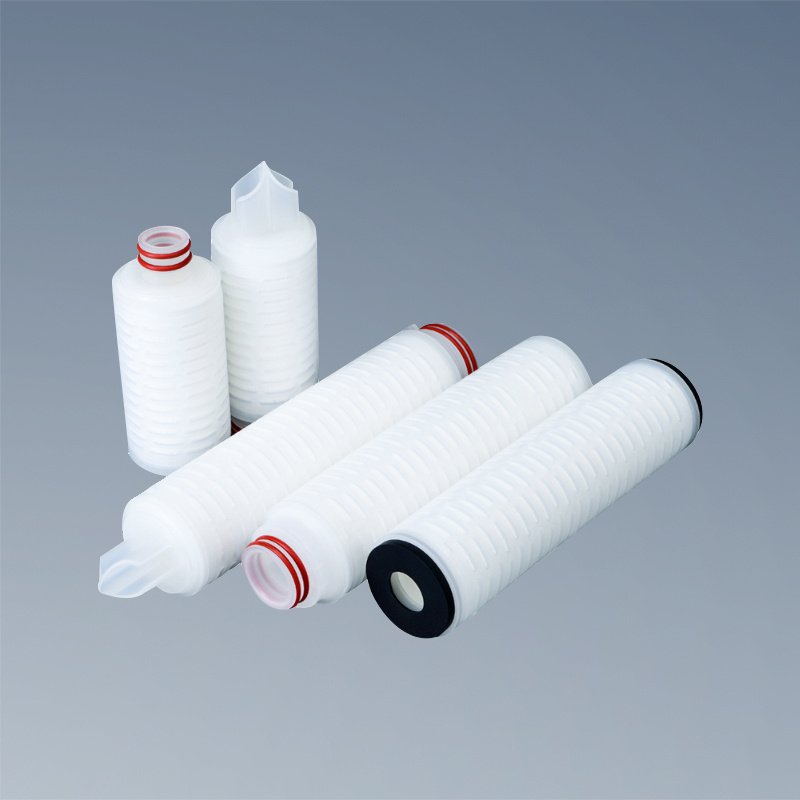

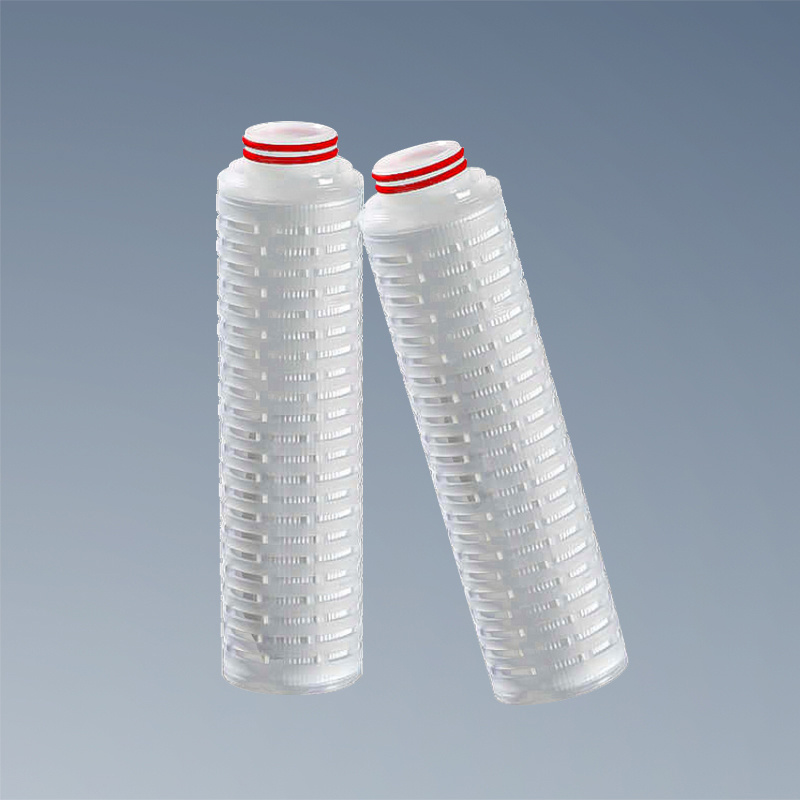

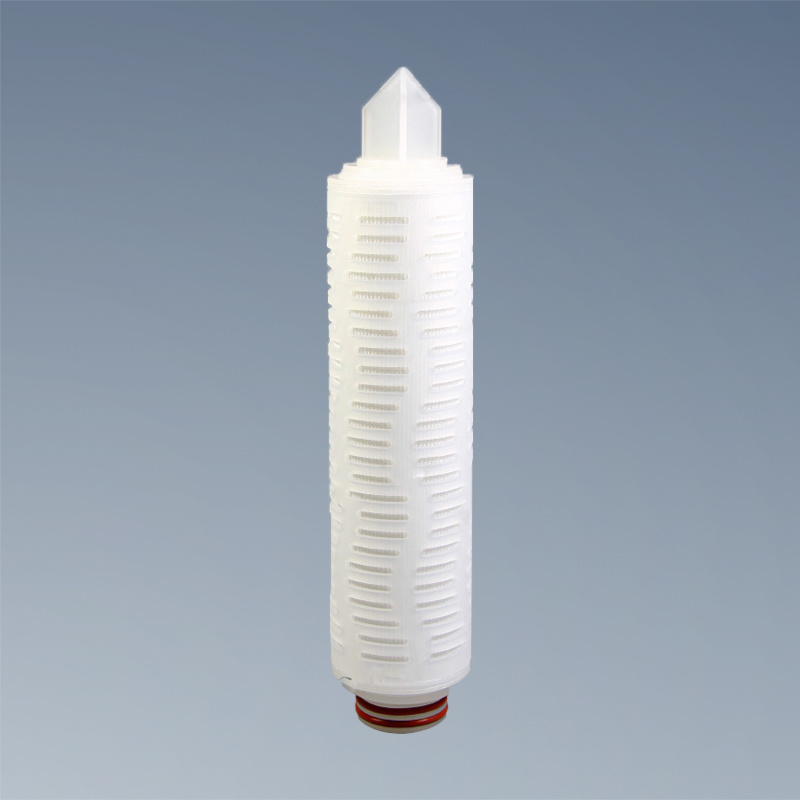

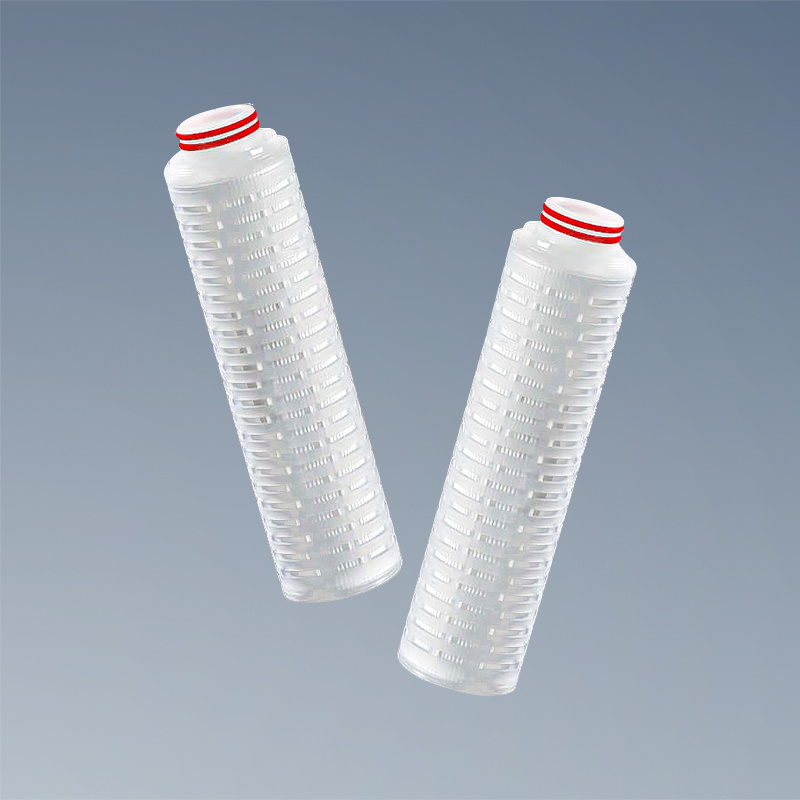

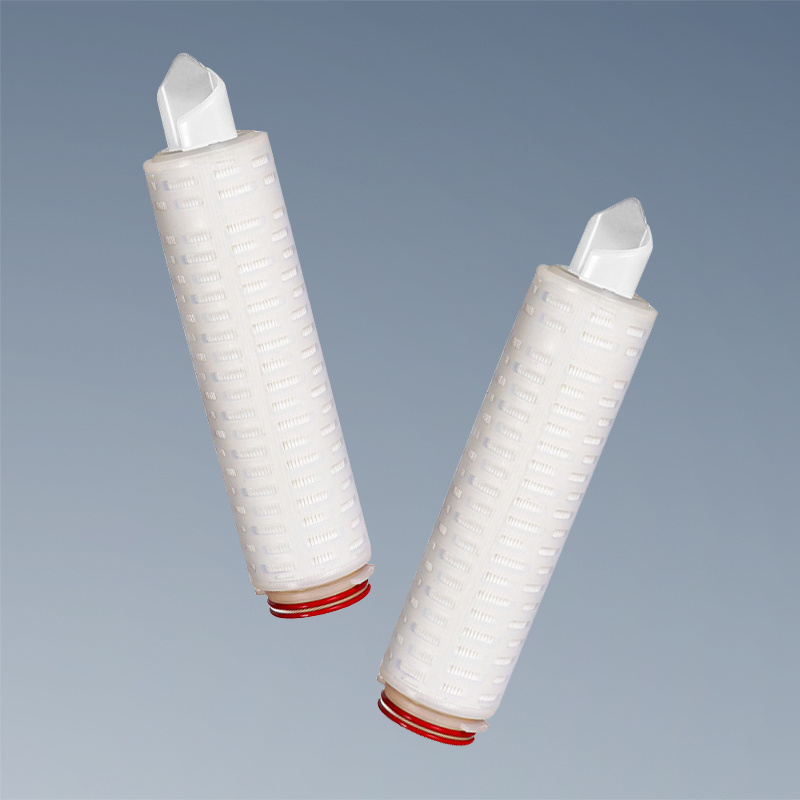

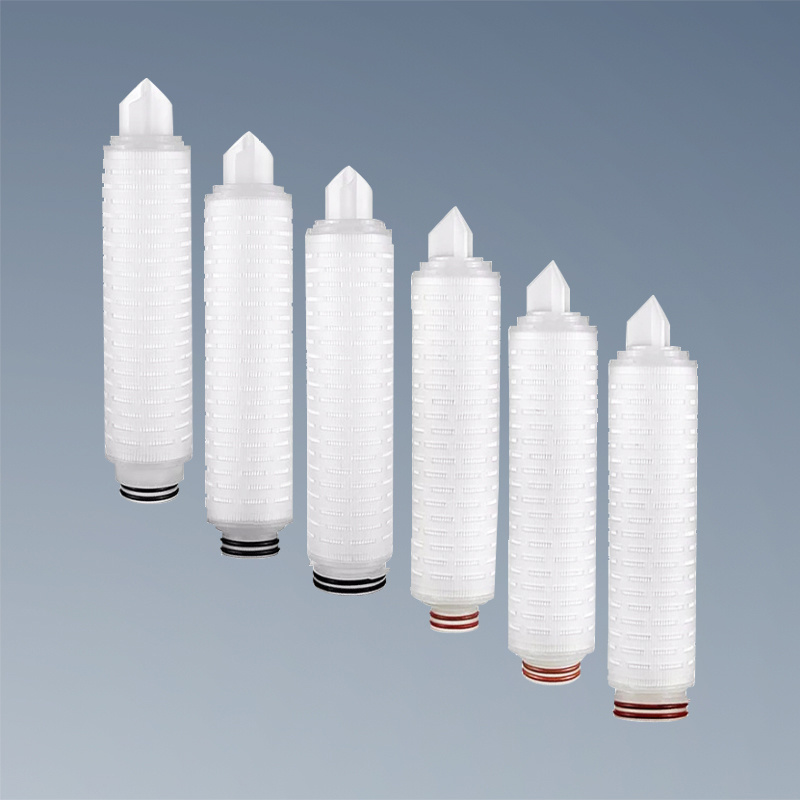

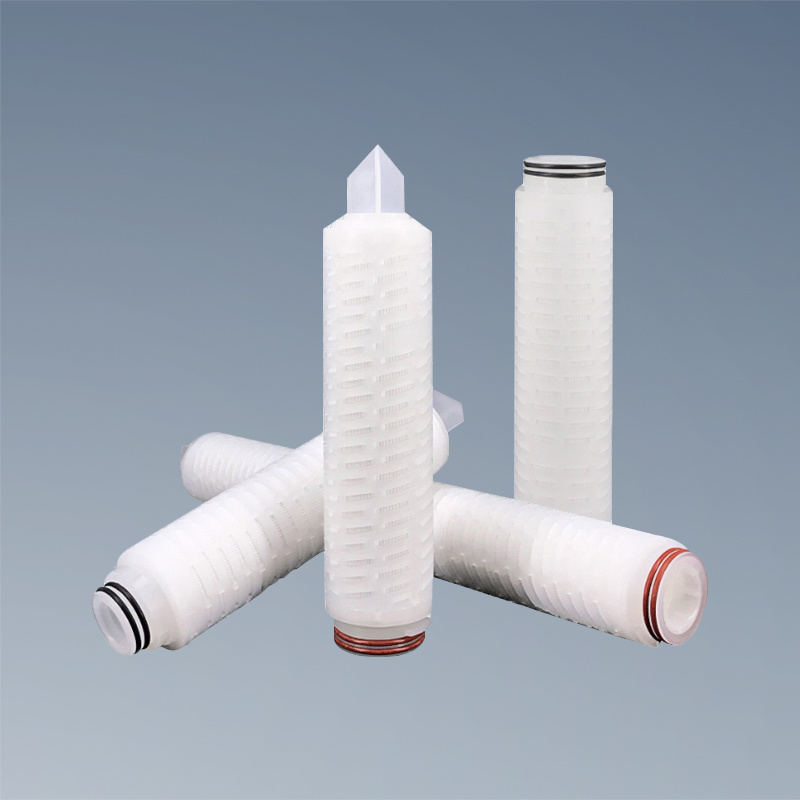

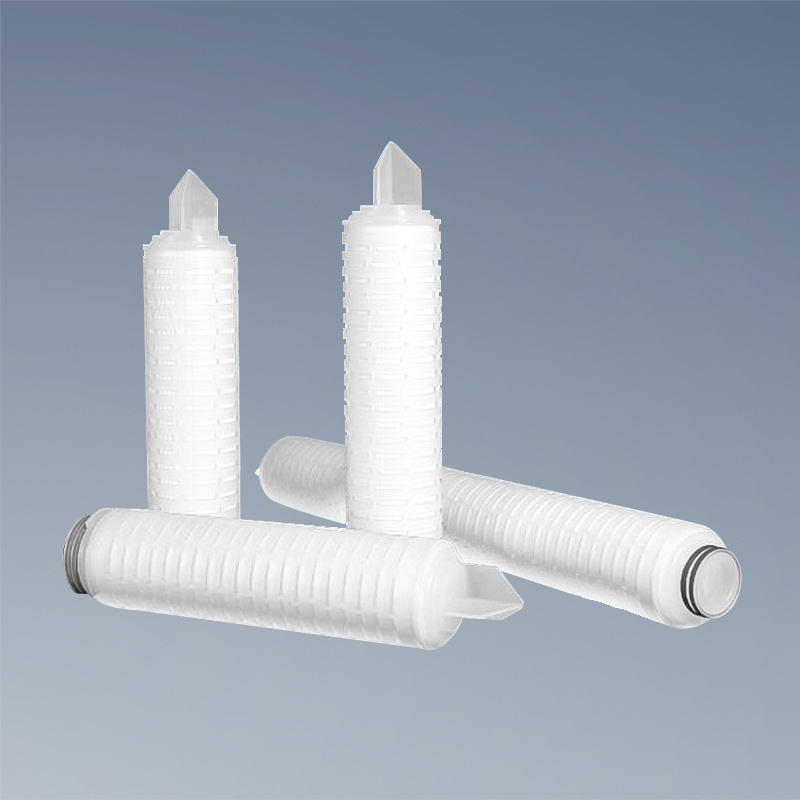

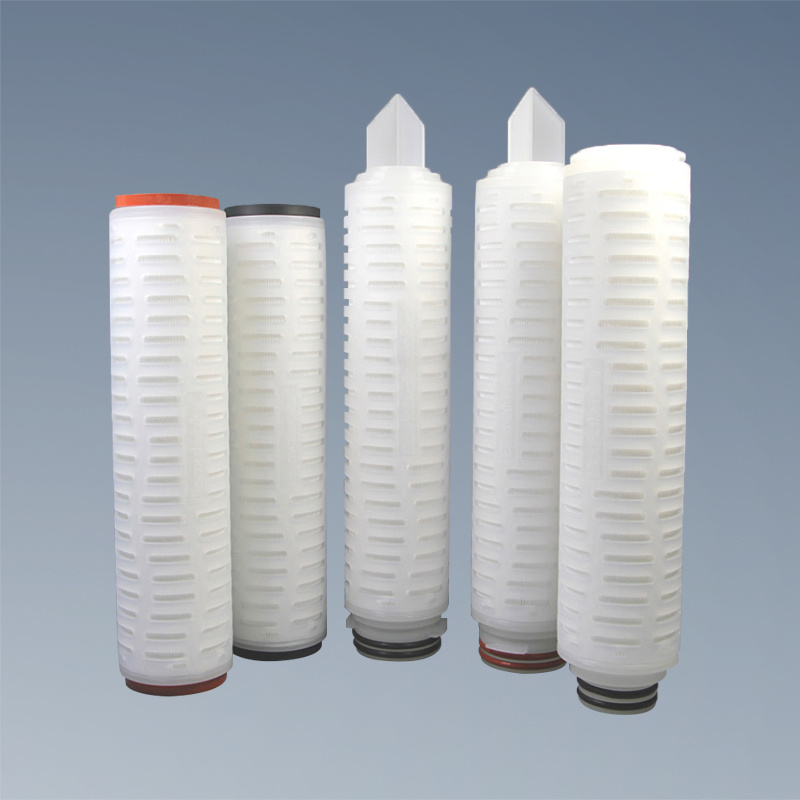

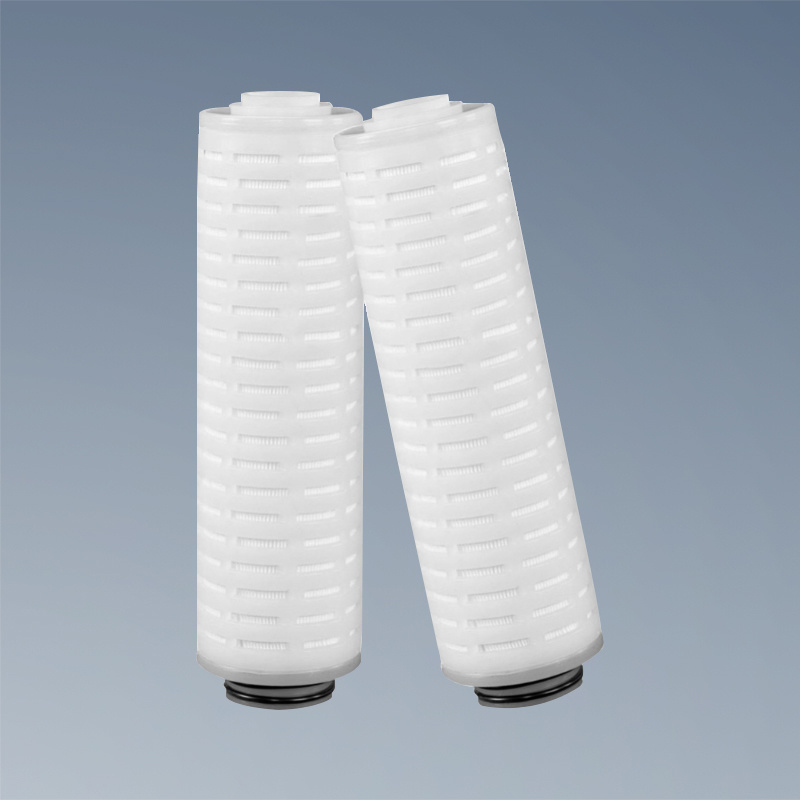

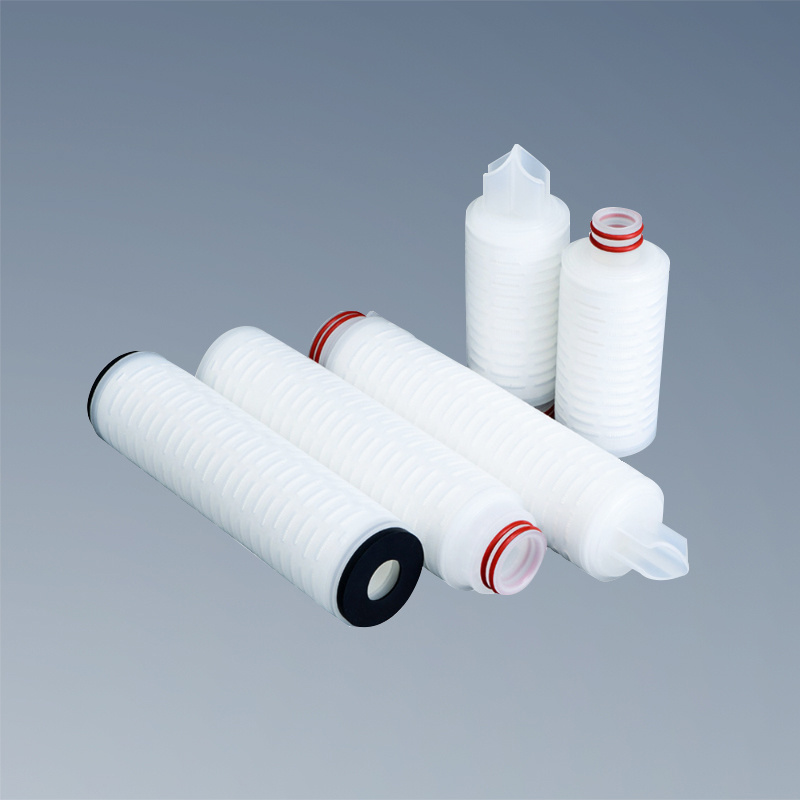

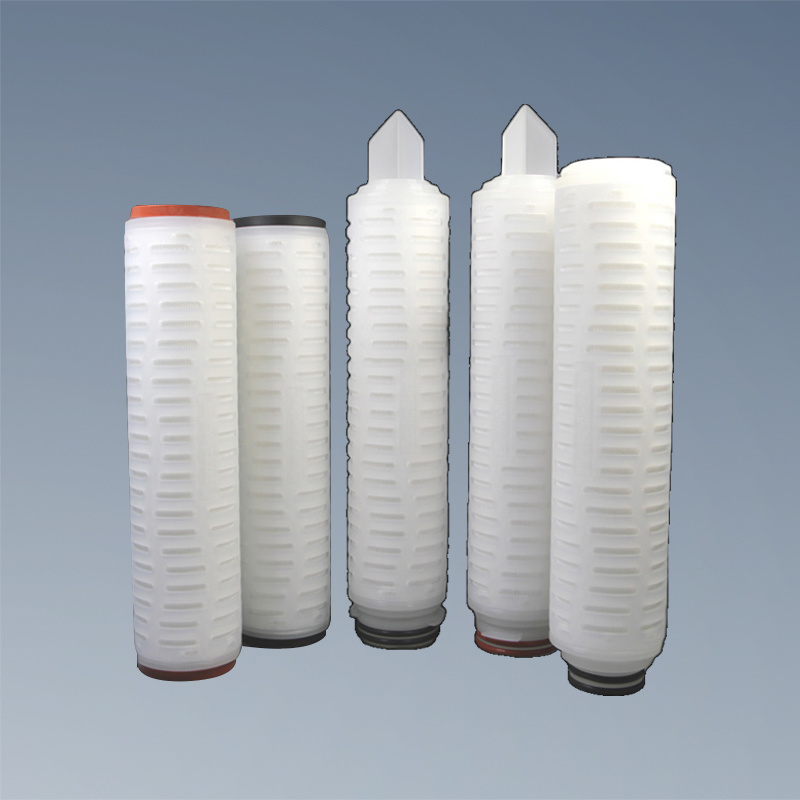

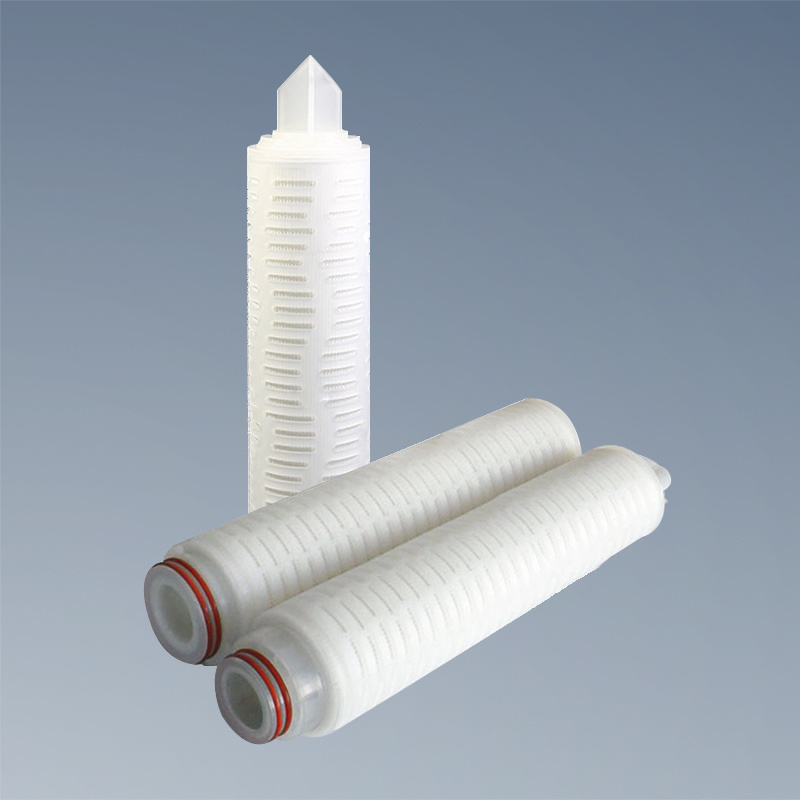

DP-01 General Purpose Polypropylene Filter Cartridge
Price varies depending on material, logo, quantity and customization requirements.
Introduction
-
★ DP-01 Polypropylene (PP) filter cartridge is made from high quality Chinese / imported PP membrane. It combines low cost, high flow and relatively high retention rate.DP-01 is the most widely used filter cartridge in micro-porous precision filtration applications.
★ All PP components are with good chemical compatibility and suitable for the filtration of most kinds of the liquid (acid, base, salt or other solutions).
★ The End caps and Cage are melt sealed with the filter media. There is no extractable and adhesive The filter cartridge can be used for high-purity pharmaceutical / microelectronics and other clean fields of filtration.
Specification
Outer diameter: 68 mm
Inner diameter: 33 mm
Length: 5 to 40 inch
Filtration area: 0.5 to 0.7 m2/ 10 inch
Adapter: 222, 226, DOE, Thread (customized)
Operating Condition
Continuous working temperature: <60 ℃ (adapter + liner <85 ℃)
Max differential pressure（Normal Flow）: 0.41 MPa@25℃, 0.23 MPa@80℃
Max reversed flow differential pressure(Reversed Flow): 0.21 MPa@25℃
Sterilization: 121℃/ 30 min steam

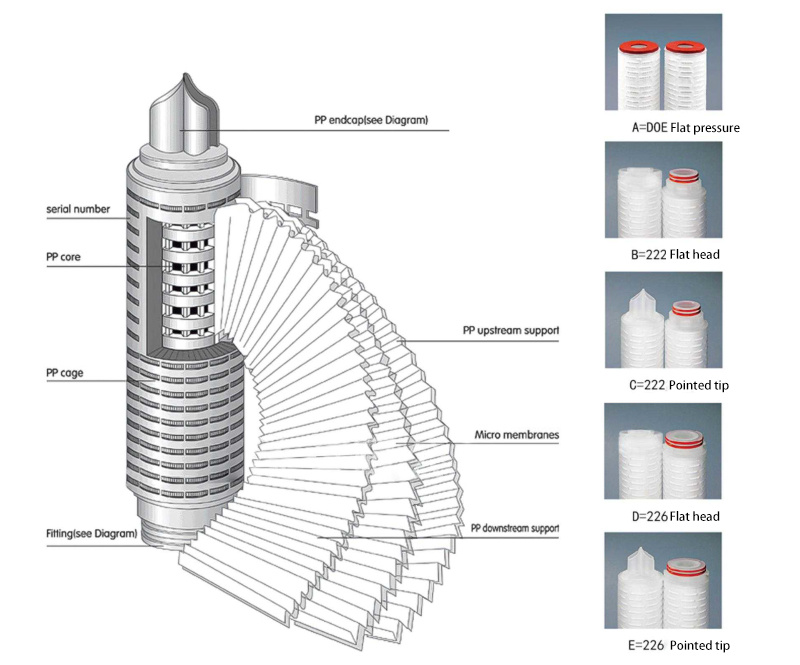

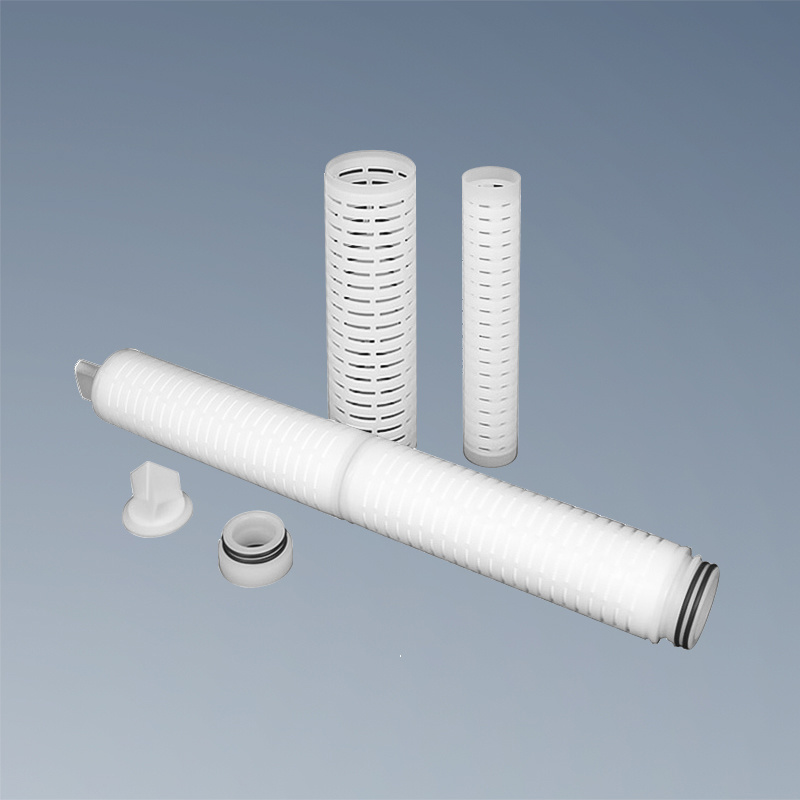

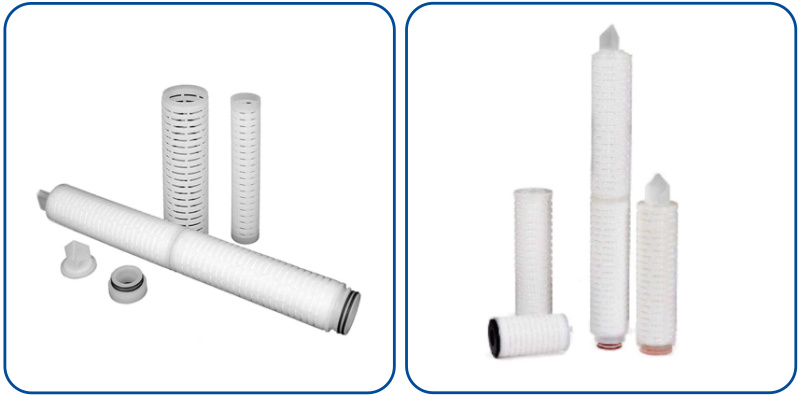

Structure & Material
Filtration layer: multi-layer PP membrane
Support/ Guide layer: Polypropylene
Inner core: PP/ SS316L
Cage: Polypropylene
End Fitting: PP / PP + liner
Application
API for pharmaceutical
Organic solution for fine chemical
Deionized water, RO, EDI pre-filtration
Micro-electronics, life science, food & beverage pre-filtration.
Ordering Information
Model Filter Rating End Fitting Length Sealing Application Code DP-01 0010=0.1um 0500=5um A=DOE flat 05=5inch S=Silicone CE=Chemical 0022=0.22um 1000=10um B=222 flat 10=10inch E=EPDM ME=Microelectronics 0045=0.45um 2000=20um C=222 fin 20=20inch V=FKM
BM=Pharmaceutical 0100=1um 5000=50um D=226 flat 30=30inch P=FEP encapsulated FB=Food & beverage 0200=2um 100H=100um E=226 fin 40=40inch F=PTFE M=Thread
