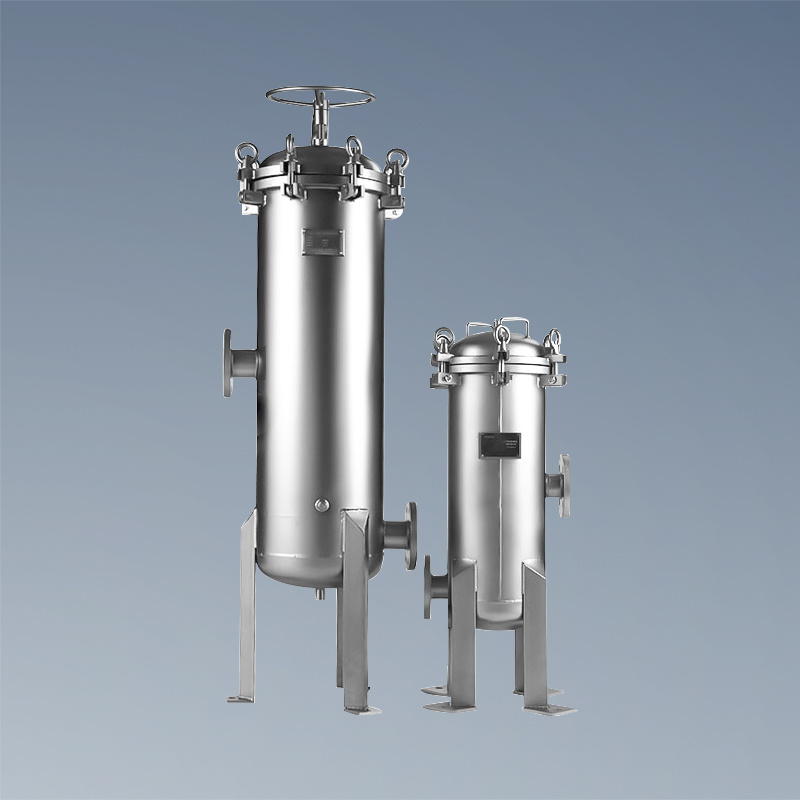

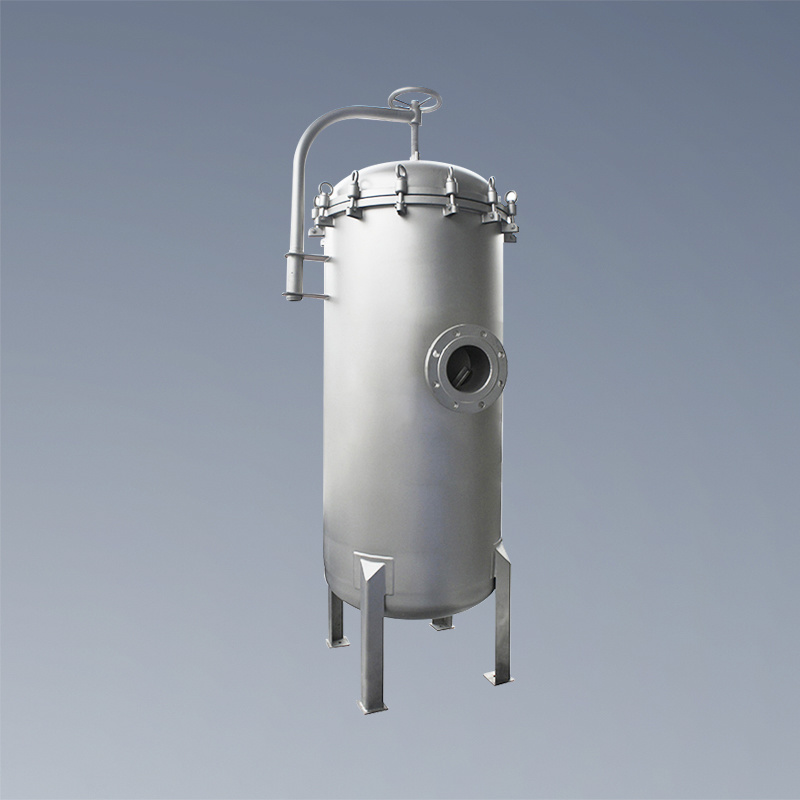

★ Bag filter has the advantages of simple structure, easy operation, large flow, energy saving and high efficiency. It is widely used in various fields of the chemical industry. It is a filter equipment with wide versatility.

★ The filter is supported by a perforated metal mesh basket inside the filter bag, and the liquid is imported into the filter bag and filtered out from the outlet. Impurities are intercepted in the filter bag, and after the replacement cycle, the filter bag can continue to be used after replacement.

★ Bag filters are classified in a variety of ways. According to the size of the flow, from the number of filter bags , can be divided into single bag and multi-bag type; According to the specifications of the filter bag can be divided into 1# bag -5# bag; According to the import and export position of the equipment, the filter can be divided into side in and bottom discharge, side in and out, bottom in and out, suitable for different installation environments.

★ The triangular plate top cover is used to fix one point on the filter, which is convenient to fix after opening and easy to maintain.

★ The top cover presses the filter cover press ring, which can seal the filter bag fully 360".

Installation steps

1. When installing or replacing the filter bag, open the nut or ring with a wrench;

2. Turn the rocker arm to make the simple cover rise;

3. Turn the cylinder cover;

4. Install or replace the filter element;

5. Move the barrel cover and turn the rocker arm to make the barrel cover close with the simple body flange;

6. Tighten the nut or ring with the plate handle.
